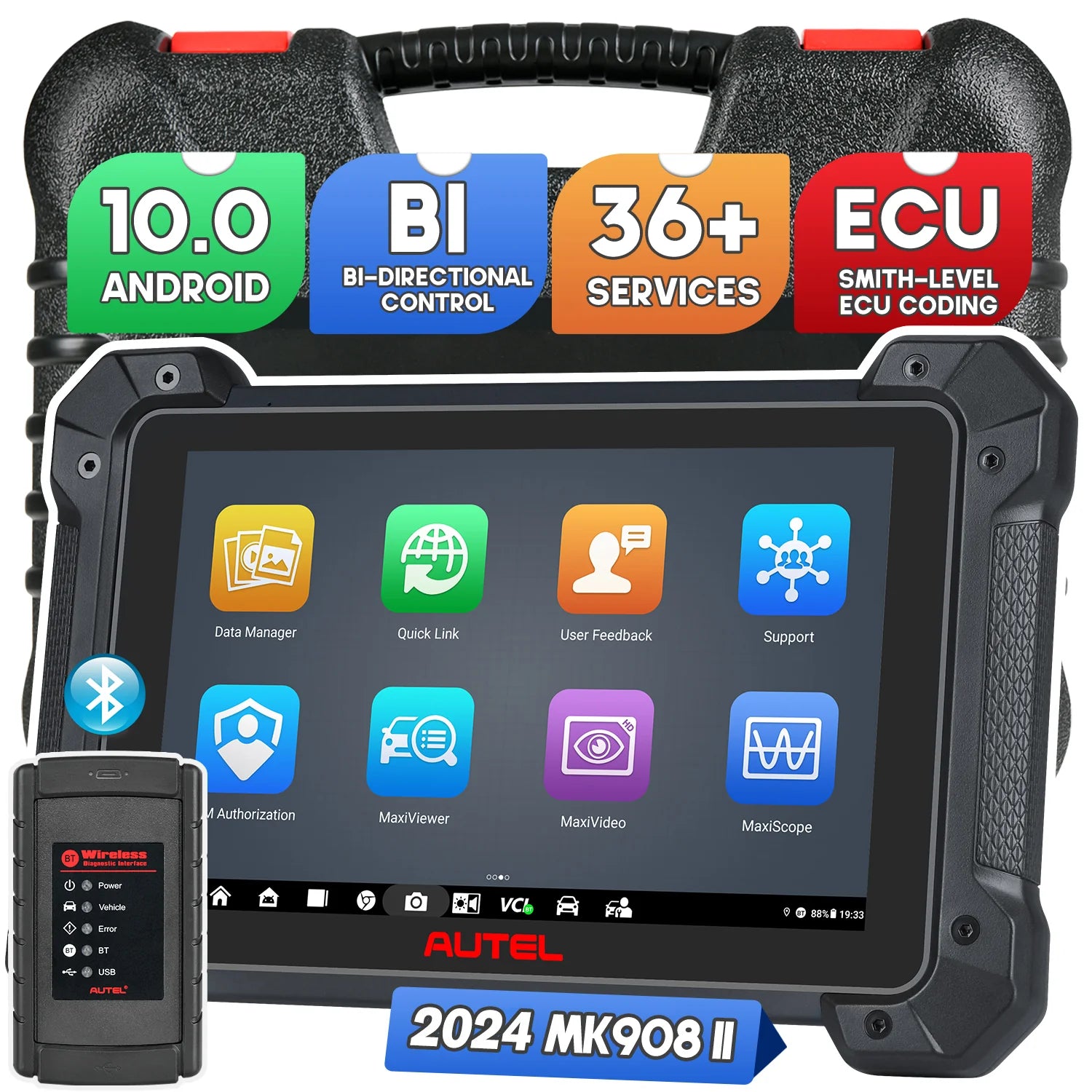

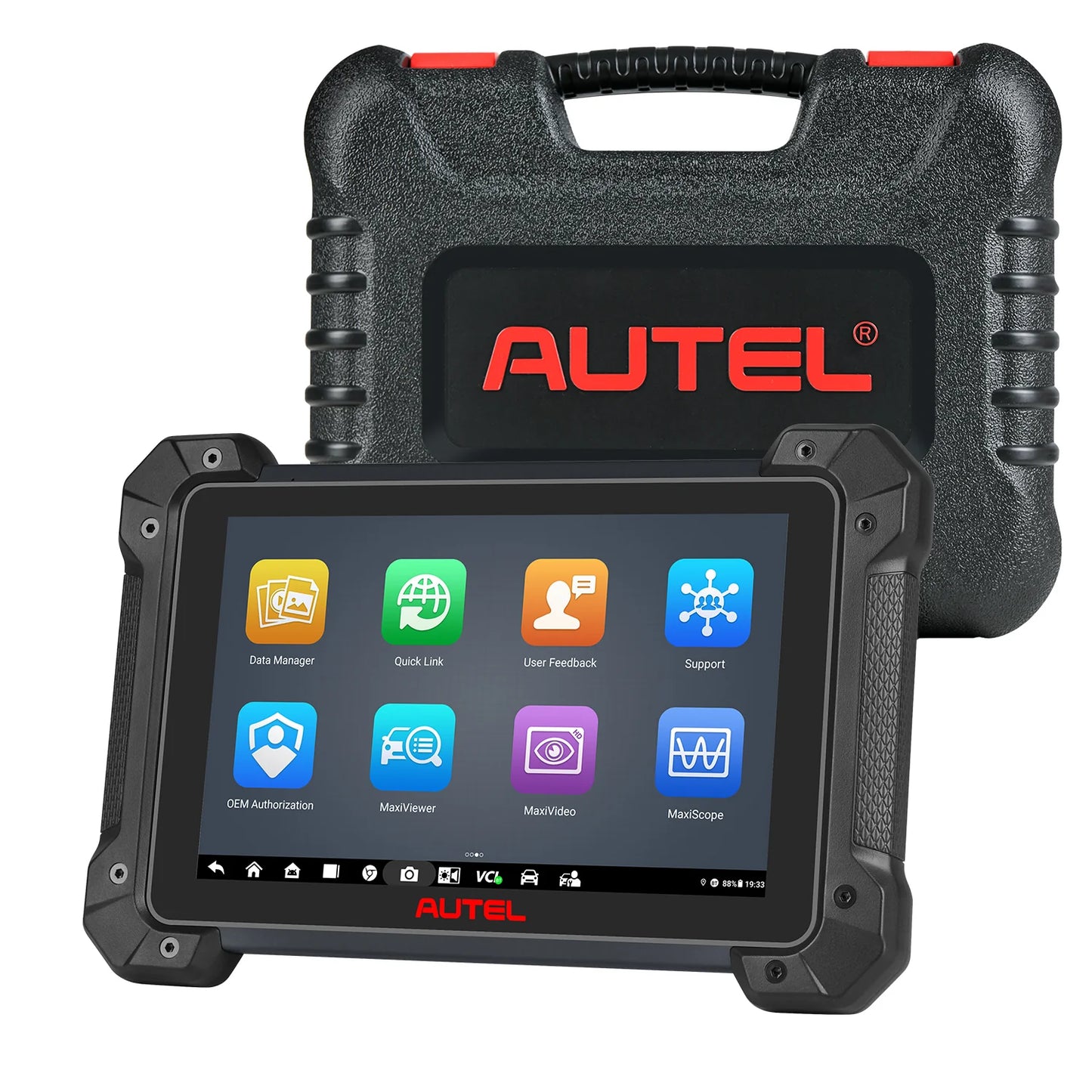

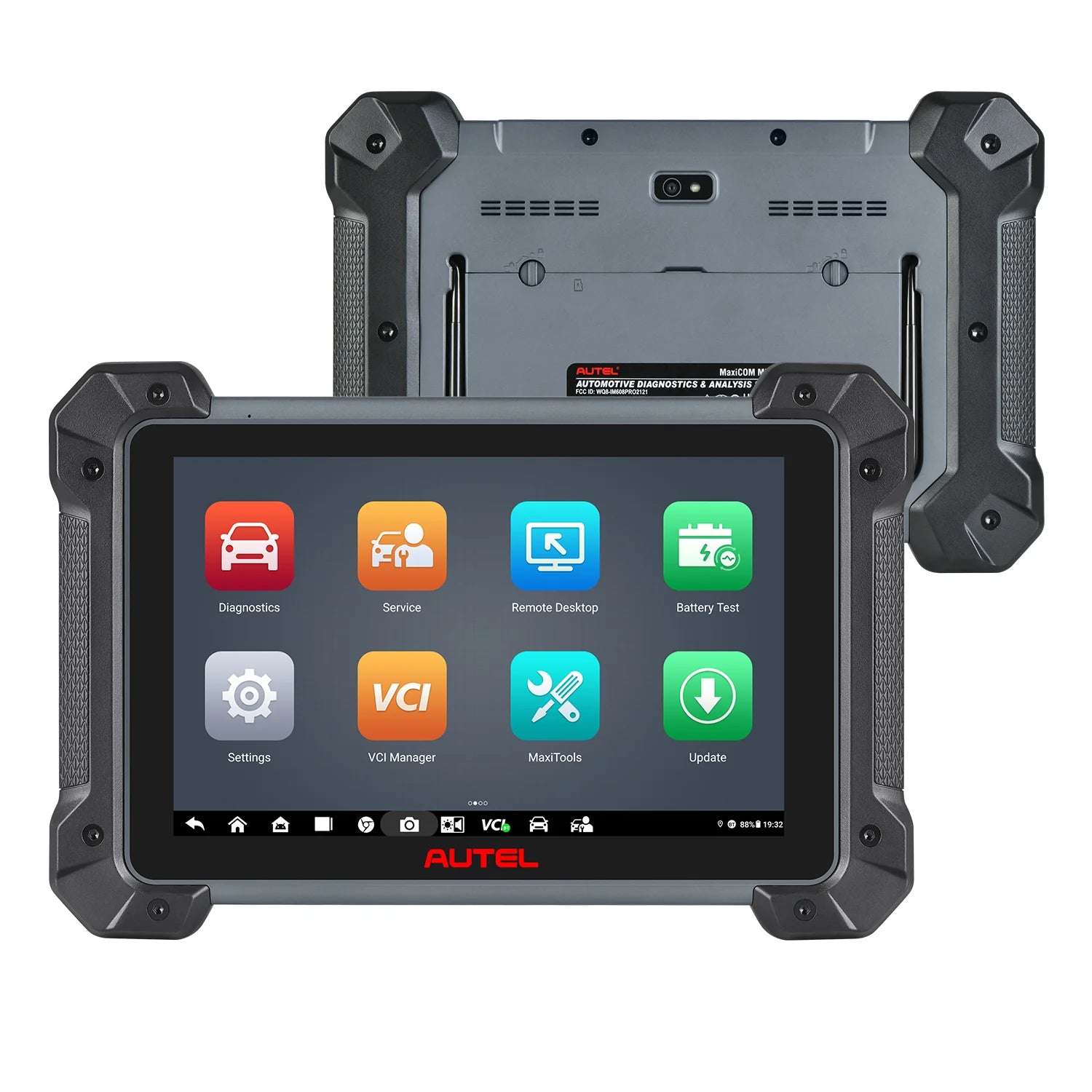

Autel MaxiCOM MK908 II OE-Level Full Systems Automotive Diagnostic Tool, 36+ Service Function, Active Test

Autel MaxiCOM MK908 II OE-Level Full Systems Automotive Diagnostic Tool

Autel MK908 II is equipped with the hardware including the powerful A7 Quad-Core 1.3GHz processor, 2GB RAM 64GB Memory, it’s fast to boot-up and multitasking. Combined with the best possible coverage of OE-Level Diagnosis, various most commonly used service functions and special functions, advanced ECU Coding, full bi-directional control, active tests and Key Fob Programming. Autel MK908 II Wireless Automotive Scan Tool is the ultimate scan tool for technicians, mechanics and DIYers.

Autel MK908 II All Systems OE-Level Diagnosis & Services:

As an addition to the complete OBD2 functions of a normal OBD2 scanner, this MK908 II professional diagnostic computer can diagnose all car systems:

    Oil reset to close the oil service light and reset service mileage & service interval after you replacing engine oil;
    EPB reset to brake reset the new electronic parking brake for braking wheels safely again;
    SAS reset to clear memories of the previous steering angle sensor and store the replaced one;
    DPF service supports forced fuel injector regeneration and adjustment;
    BMS service to reset battery management system;
    ABS brake bleeding to get a firm brake pad after air exhaustion;
    TPMS service to relearn TPMS sensors so that new sensors can be recognized by ECU;
    IMMO service enables you to disable the lost vehicle keys and program the replacement key fob. It could be one replacement key fob or more, depending on your needs.

Autel MK908 II Bi-Directional Control:

As a professional grade car scan tool, MK908 II has full Bi-Directional Control over vehicle-specific subsystem and components like ABS, SRS, window, door and roof.

Available test vary by manufacturer, year, and model, and only the available tests display in the menu. During a Bi-Directional control test, the tester outputs commands to the ECU in order to drive the actuators. This test determines the integrity of the system or parts by reading the engine ECU data, or by monitoring the operation of the actuators, such as switching a solenoid, relay, or switch, between two operating states.

 Autel MK908 II ECU Coding Capability:

This function allows you to establish a data link to the electronic control system of the test vehicle via the VCI device for vehicle diagnosis, service or programming. You can operate functional tests, retrieve vehicle diagnostic information such as trouble codes, event codes and live data, and perform ECU reprogramming, for various vehicle control systems, such as engine, transmission, ABS and more.

NOTE: The ECU programming function can only be applied through connection with the J2534 programming device (Autel MaxiFlash Elite), which serves as a Pass-Thru interface to establish communication with and transfer data to the vehicle’s ECU. ECU programming functions need to buy an Autel MaxiFlash Elite separately. Connect it to MK908 II and update the scanner to a MK908P.

Autel MaxiCOM MK908 II Specification:

    Operating System: Android 10.0
    Processor: Qualcomm 660 Octa-core Processor (2.2GHz Quad-core A73+1.8GHz Quad-core A53)
    Memory: 4GB RAM & 128GB On-board Memory
    Display: 10.1-inch LED screen with 1920x1200 resolutions
    Connectivity: Wi-Fi (802.11 a/b/g/n/ac); USB 2.0 (2 USB TYPE-A ports and a Mini USB port); BT V5.0 + BR/EDR; SD Card (Support up to 64GB); HDMI
    Camera (rear): 16 Megapixel, AF with Flashlight
    Sensors: Gravity Accelerometer, Ambient Light Sensor (ALS)
    Input Voltage: 12V (9-24V)
    Power Consumption: 6.5 W
    Operating Temp.: 0 to 50°C (32 to 122°F)
    Storage Temp.: -20 to 60°C (-4 to 140°F)
    Housing: Strong plastic housing with protective rubber boot
    Protocols: ISO 9142-2, ISO 14230-2, ISO 15765-4, K/L-Line, Flashing Code, SAE-J1850 VPW, SAE-J1850 PWM, CAN ISO 11898, Highspeed, Middlespeed, Lowspeed and Singlewire CAN, GM UART, UART Echo Byte Protocol, Honda Diag-H Protocol, TP 2.0, TP 1.6, SAE J1939, SAE J1708, Fault-Tolerant CAN

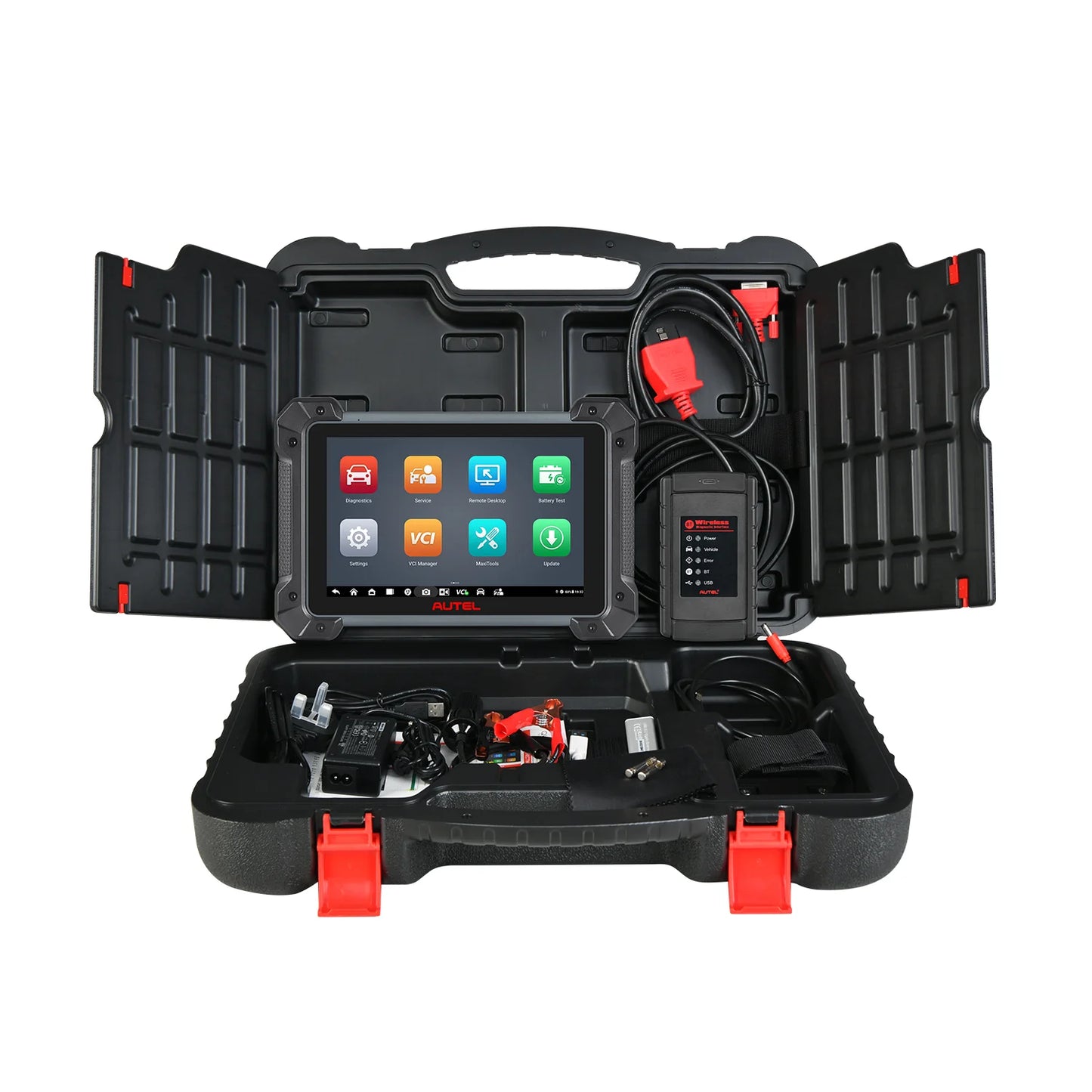

Autel MaxiCOM MK908 II Package List:

    1x MaxiCOM MK908 II main unit
    1x Bluetooth diagnostic interface
    1x AC/DC adapter (12V)
    1x User manual
    1x Carrying case
    1x Quick reference guide
    1x Lighter fuse
    1x Main cable
    1x Micro USB Cable
    1x Cigarette lighter
    1x Soft cloth
    1x Packing list
    1x Mini USB cable
