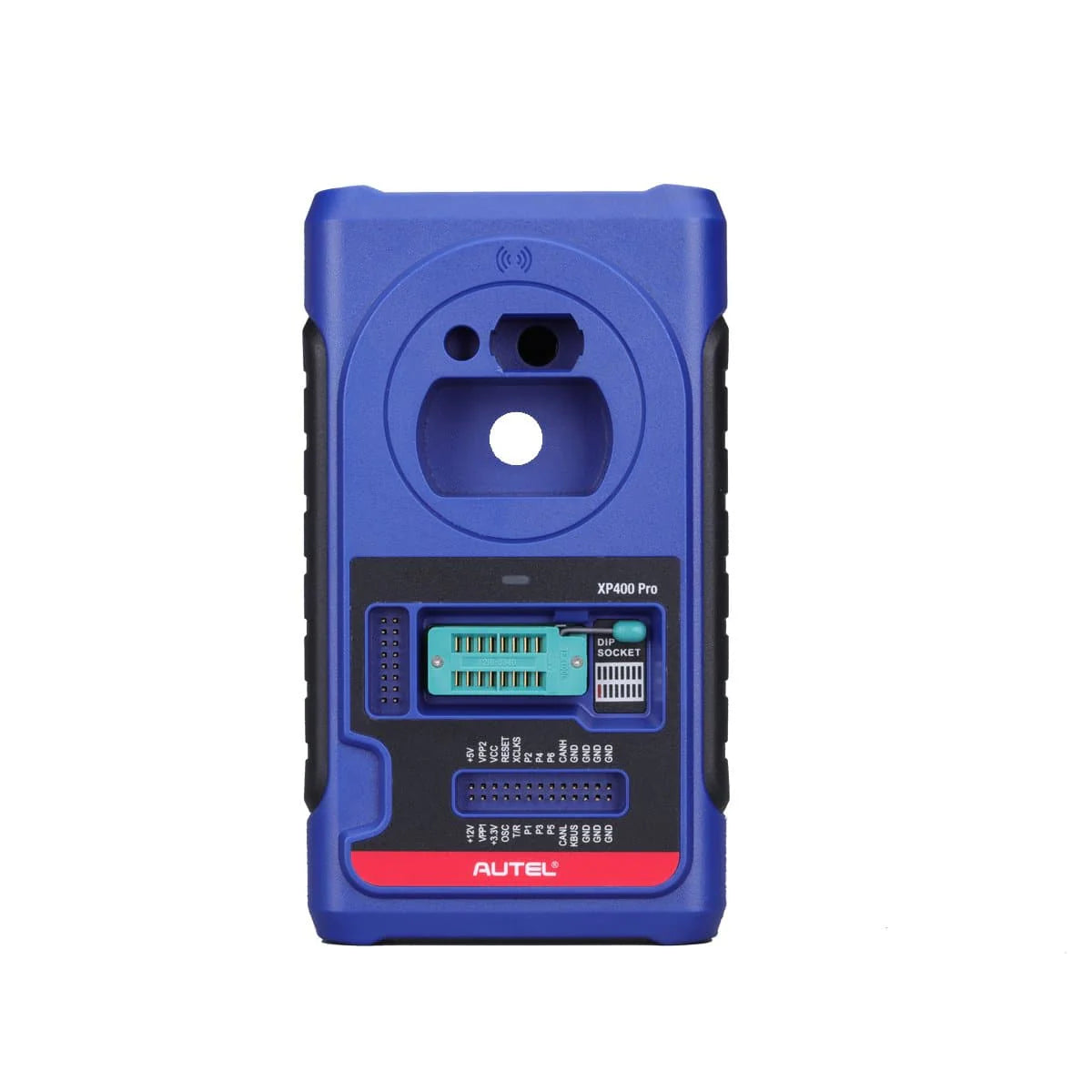

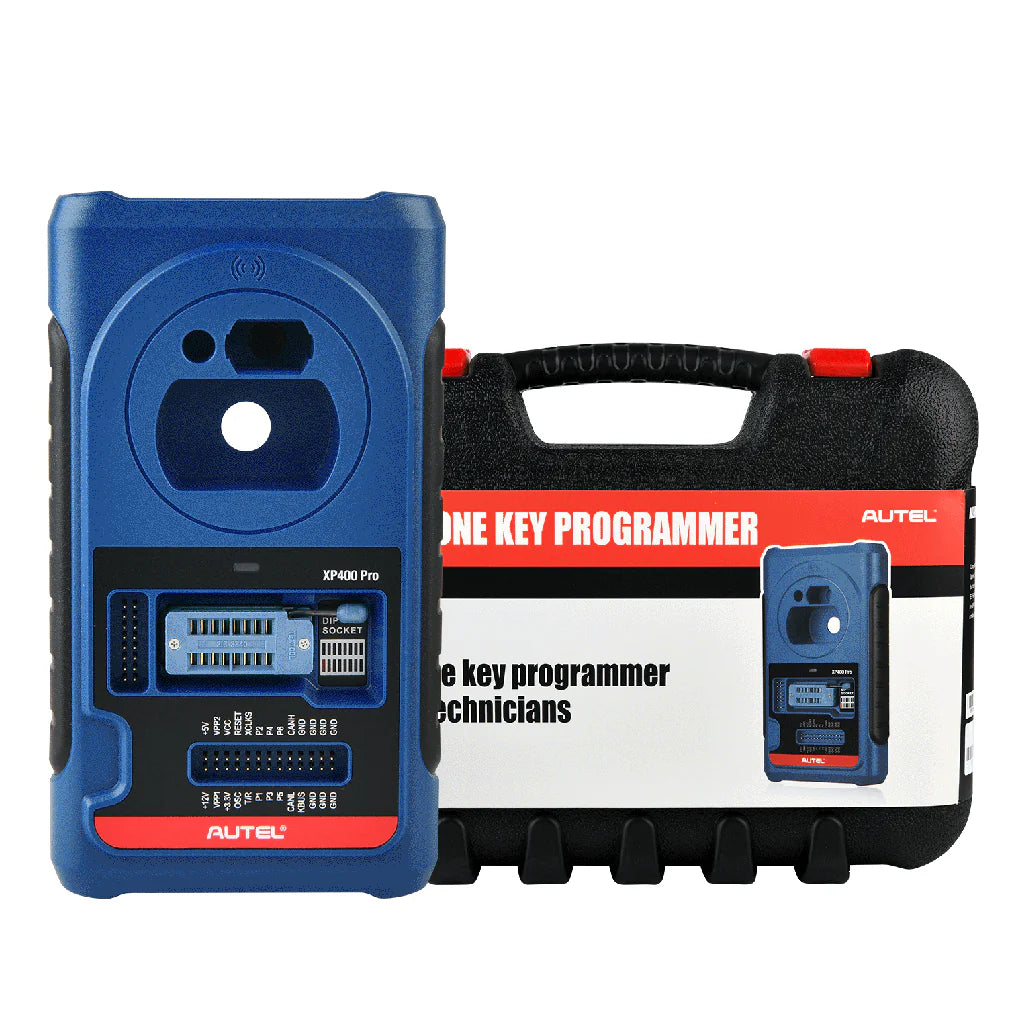

Autel XP400 Pro Programmer IMKPA Kit Expanded Key Programming Accessories

Autel XP400 Pro Programmer IMKPA Kit Expanded Key Programming Accessories

Autel XP400 Pro Functions:

    (1) Read transponder data (including Mercedes Benz infrared smart
    key), and generate exclusive keys.
    (2) Read/write on-board EEPROM chip data, and read/write
    MCU/ECU chip data.
    (3) Read/write remote control transponder data and detect key
    frequency.
    (4) Compatible with the key programming diagnostic tablet or a computer with installed key programming software, the XP400 Pro can read/write transponder data quickly and accurately.

 XP400 Pro Programmer Features:

    Advanced all-in-one Key Programmer;
    Expanded EEPROM functions for more component access;
    170+ Types Odometer component reading functions;
    180+ Immobilizer ECU component types;
    40+ Engine ECU component types;
    2000+ MCU component types;
    440+ EEPROM component types;
    Compatible with IM508 and IM608;
    Includes 1-Year Warranty / Free Software Update for Life of Tool

XP400 Pro Specifications:

    Operating Temperature: -10℃ ~ 70℃ (14℉ ~ 158℉)
    Storage Temperature: -20℃ ~ 85℃ (-4℉ ~ 185℉)
    Port Type: B-USB, DB26, DC12
    Input Voltage: 5 VDC, 12VDC
    Operating Current: < 500 mA
    Maximum Consumption: 2.5 W
    Device Dimensions: (L*W*H) 168 mm*98 mm*30 mm
    Net Weight: 520g

XP400 Pro Package List

    1 x XP400 Pro Main Unite

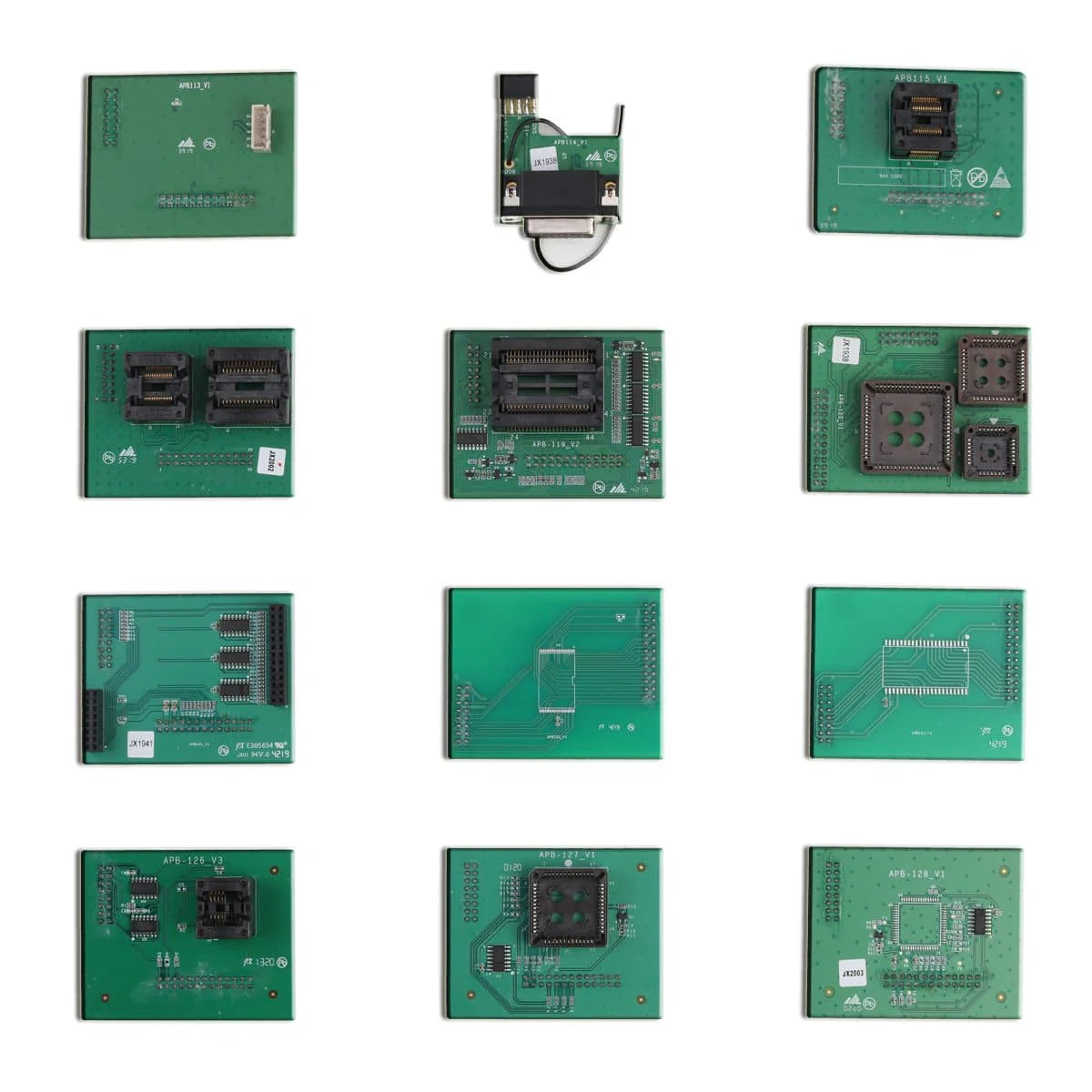

    1 x APB129 – EEPROM Adapter
    1 x APA002 – EEPROM Socket
    1 x APB125 – Mercedes Infrared Collector
    1 x APB103 – MCU_PLCC52 Adapter
    1 x APB104 – MCU_FQFP64 Adapter
    1 x APB105 – MCU_FQFP80 Adapter
    1 x APB106 – MCU_FQFP112 Adapter
    1 x APB107 – MCU_FQFP144 Adapter
    1 x APB108 – MCU_FQFP176 Adapter
    1 x APB109 – MCU_FQFP32 Adapter
    1 x APB110 – MCU_FQFP48 Adapter
    1 x APB111 – MCU_SO28 Adapter
    1 x APA101 – Spare Signal Cable
    1 x APC101 – USB Cable (Standard USB –Type B USB)
    1 x APA103 – EEPROM Clamp
    1 x Dupont Line
    1 x APA107 – ECU Cable
    1 x APA108 – MCU Cable
    1 x APA109 – MC9S12 Cable
